XLB-80 Series American Standard Casement Window Product Introduction

XLB-80 Series American Standard Casement Window Product Introduction

1. Product Basic Overview
Our XLB-80 series casement window is a high-performance aluminum window system independently developed for North American, European and Oceania high-end construction markets. The main frame wall thickness reaches 2.0mm, with a maximum bearing capacity of 80KG; the sash width ranges from 600-900mm, and sash height supports 600-1800mm flexible customization, standard window overall size can be designed up to 2800mm*1850mm to meet various villa, commercial storefront, apartment and public engineering window opening demands.

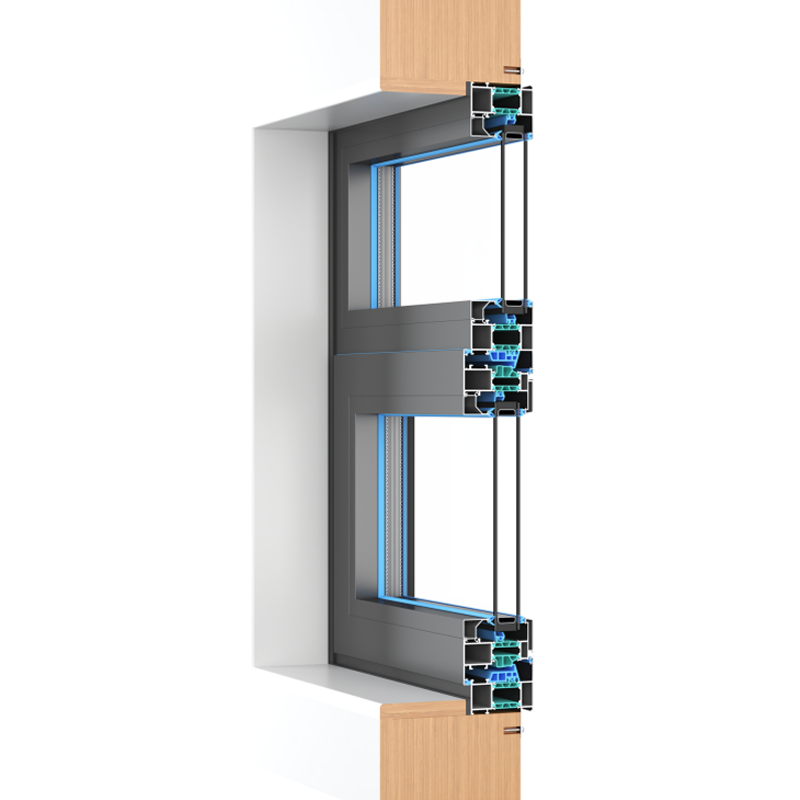

This system adopts integrated extrusion aluminum profiles + injection glue corner brace technology, effectively improving the overall structural rigidity of the window frame, anti-deformation performance and long-term service stability. Multiple profile cross-section schemes are reserved inside the system, supporting diversified opening methods and various glass configurations, which is a mature multi-certified American standard aluminum window system with complete test reports and global authoritative certifications.

2. Diverse Opening & Installation Solutions
The XLB-80 casement window supports ultra-rich functional structure combinations to cover all mainstream building window requirements:

• Opening types: Inward tilt & turn, outward opening, top-hung, fixed window, swing door, sliding door, emergency escape door, American standard Storefront door;
• Installation structures: Sub-frame installation, double flying sash, unit curtain wall connection, window side light with matching door, ADA barrier-free track for disabled access;
• Glass clamping accessories: Equipped with 5 types of customized pressure clips, compatible with single lite glass, laminated safety glass, double insulated IGU glass, triple insulated glass and triple laminated insulated composite glass.

Whether it is residential private housing, high-rise commercial buildings, shopping mall storefronts or public barrier-free projects, we can provide one-stop customized structural solutions according to local building codes.

3. Core Physical Performance Parameters
All performance data of the XLB-80 series window comes from third-party authoritative laboratory testing, with complete test reports available for customer review:

1. Heat Insulation Performance: Heat transfer coefficient UW ≤1.2W/m²K; certified IGCC energy-saving glass, overall window U-value ≤0.22, far exceeding the NA standard limit of 0.3; passed US Energy Star certification, outstanding thermal insulation, effectively reducing building air conditioning and heating energy consumption.
2. Wind Pressure Resistance: Ultimate wind resistance up to +5040Pa, upgraded version reaches 8000Pa, fully adapts to coastal typhoon-prone areas, effectively resisting strong wind impact and avoiding window deformation and air leakage.
3. Watertight Performance: Standard watertightness 720PA, enhanced version reaches 1000PA, perfect waterproof structure design with multi-layer EPDM sealing strips, effectively blocking rainwater penetration under heavy rain and typhoon weather.
4. Sound Insulation Performance: Strictly tested in accordance with American ASTM E90 standard, STC sound insulation value up to 56 decibels, indoor RW sound insulation reaches 37dB, can effectively isolate outdoor traffic noise, construction noise and community noise, create quiet indoor living environment.

​

4. Full Set of Global Authoritative Certifications (Core Highlight)
The biggest competitive advantage of our XLB-80 casement window lies in complete international authoritative certifications, which can smoothly pass the engineering acceptance of North America, Europe and Australia, and avoid customer certification barriers in overseas projects:

1. North American System Certifications: Obtained official NFRC certification (National Fenestration Rating Council), CSA certification, applied for NOA & FPA Florida hurricane approval, covering all 50 states of the United States; passed Miami-Dade County hurricane test standard, fully compliant with American high-rise and coastal building codes.
2. European Standard Certification: Own CE conformity certification issued by TÜV Rheinland, with complete EN standard performance test reports for inward opening, outward opening, fixed window and swing door.
3. Industry Standard & Laboratory Qualifications: Intertek factory inspection certification, NAMI, CSI energy-saving certification, ASTM E90 sound insulation test report, IGCC glass certification; all test reports, verification of conformity documents and certification authorization certificates can be provided to customers for project filing and bidding.

All certification documents are real and traceable, supporting official website inquiry, which is a powerful qualification guarantee for overseas engineering bidding, real estate development and commercial construction projects.

5. High-Quality Supporting Materials & Craft Advantages

1. Profile & Hardware: Standard 2.0mm thick aluminum alloy profiles, optional upgraded 1.8mm high-strength profiles; matched with ROTO brand international hardware, stable opening and closing, anti-corrosion and long service life.
2. Sealing & Adhesive: Adopt Haida multi-layer composite sealing strips + Baiyun neutral weather-resistant glue, tight sealing, anti-aging, anti-yellowing, durable waterproof and heat insulation effect.
3. Structural Craft: Injection glue corner brace process is used at window frame joints, which greatly enhances the connection strength of the frame corners, avoids corner cracking and deformation caused by long-term temperature difference expansion and contraction, and the overall structure is safer and more stable.
4. Customization Service: Support color customization of profile surface (powder coating, fluorocarbon spraying), customized size of window sash, matching glass thickness and configuration, customized installation accessories and unit connection schemes to meet differentiated market demands.

6. Application Scenarios
XLB-80 series American standard casement window is widely applicable to high-end villas, residential apartments, high-rise commercial office buildings, shopping mall storefronts, school public buildings, barrier-free medical projects, coastal typhoon-resistant buildings and other construction fields, perfectly matching the construction standards of the United States, Canada, Europe, Australia and other regions, and is the preferred aluminum window system for overseas engineering contractors, real estate developers and window and door distributors.
